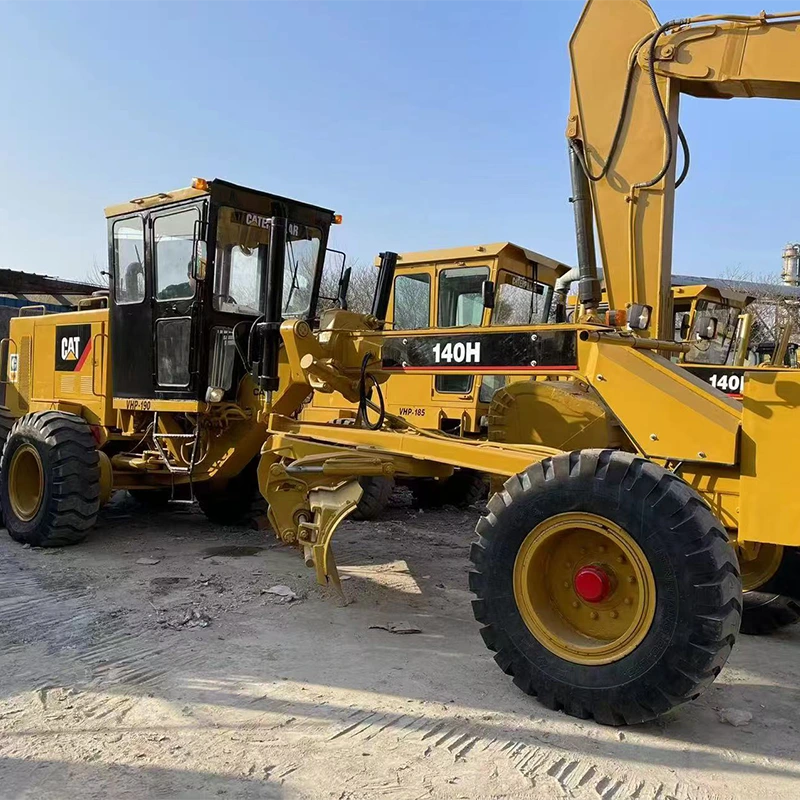

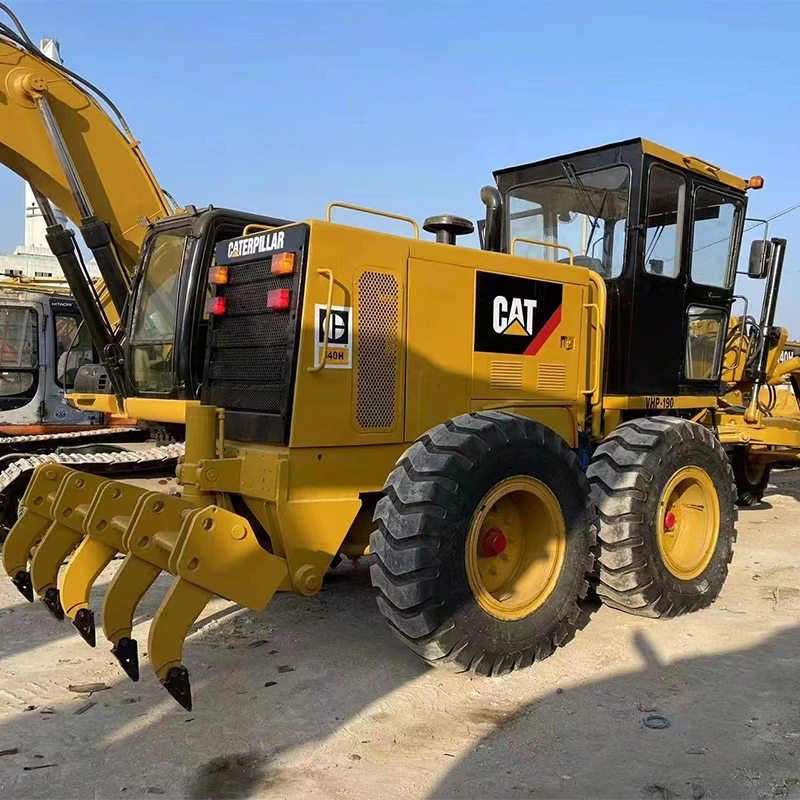

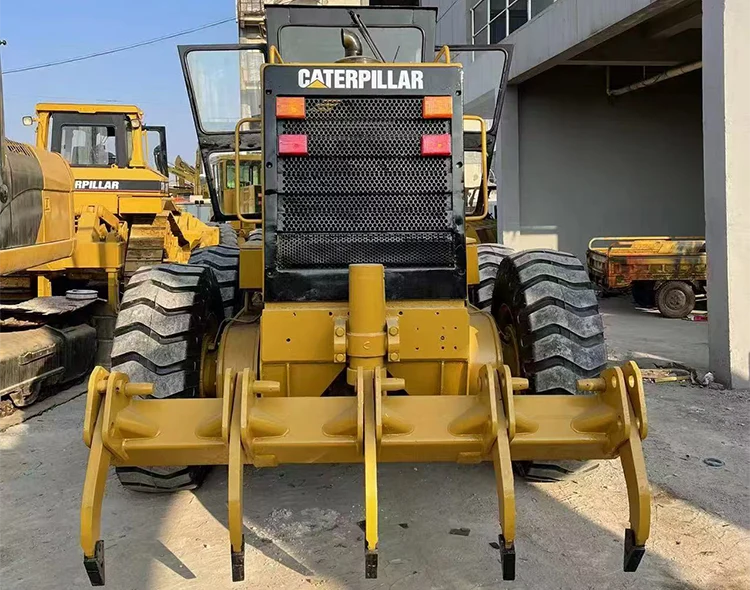

Used CAT 140H motor grader
The Used CAT 140H Motor Grader features a robust Caterpillar 3176CDITAATAACVHP engine with six cylinders and 138kW power at 2000rpm. Its versatile blade (3658×610mm) offers a lifting height of 1480mm and cutting angle adjustment up to 40°. With an axial piston hydraulic system (206 L/min flow, 24150 Kpa pressure), it delivers precision grading. The machine weighs 14,677kg, has a minimum turning radius of 7.5m, and supports multi-terrain operations.
Main Parameters of Used CAT 140H Motor Grader
Blade performance
Blade length x height：3658 * 610 mm
Blade lifting height：1480 mm
Scraper depth：715 mm
Cutting angle：5°
Blade inclination angle： 40°
Engine
Model：Caterpillar 3176CDITAATAACVHP
Rated power：138/2000 kw/rpm
Number of engine cylinders：6
Displacement：10.3 L
Horsepower：181-250 horsepower
Steering system
Minimum turning radius： 7.5 m
Hydraulic system
Hydraulic pump type：axial piston
Main pump flow rate：206 L/min
Main pump pressure：24150 Kpa
Gearbox
Driving speed 4th gear：44/34.7 km/h
Oil filling amount
Fuel tank：397 L
Hydraulic system：80 L
Coolant：38 L
Operating weight
Basic type complete machine：14677 kg
Basic front axle：4138 kg
Basic rear axle：10539 kg
Specifications&Dimensions
Blade to front wheel distance：2561 mm
Total length of the machine：8173 mm
Overall width of the machine：2464 mm
Whole machine height：3131 mm
Front and rear axle wheelbase：6169 mm
Middle and rear wheelbase：1523 mm
Minimum ground clearance：344 mm
